ReConan - Investigate the Unseen

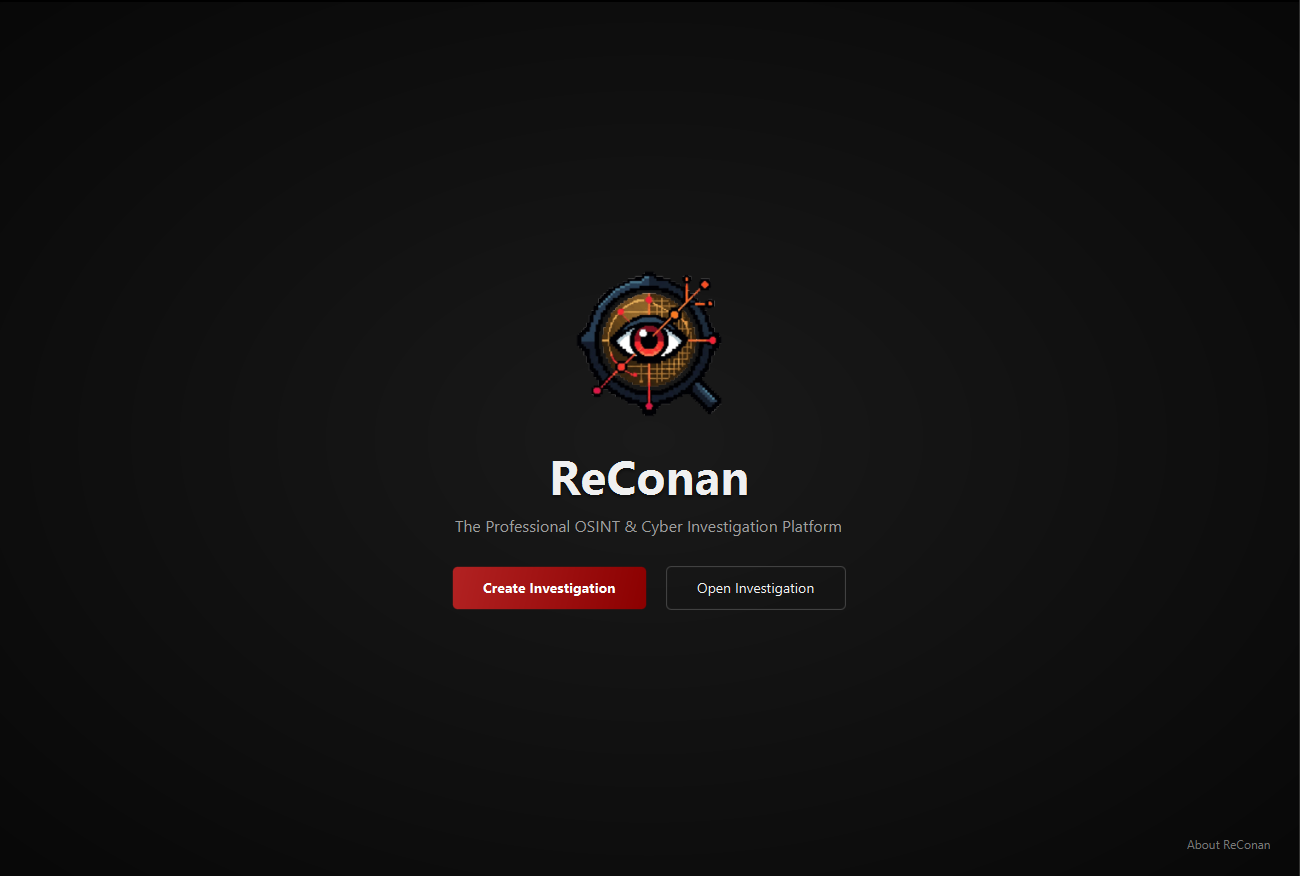

ReConan - Main Menu

Main Menu

Your investigation hub

The main menu is the starting point for every session. Quickly create a fresh case, reopen a previous one, or pick up exactly where you left off.

Create or open investigations in one click

Recent cases surfaced at a glance

Clean, distraction-free layout

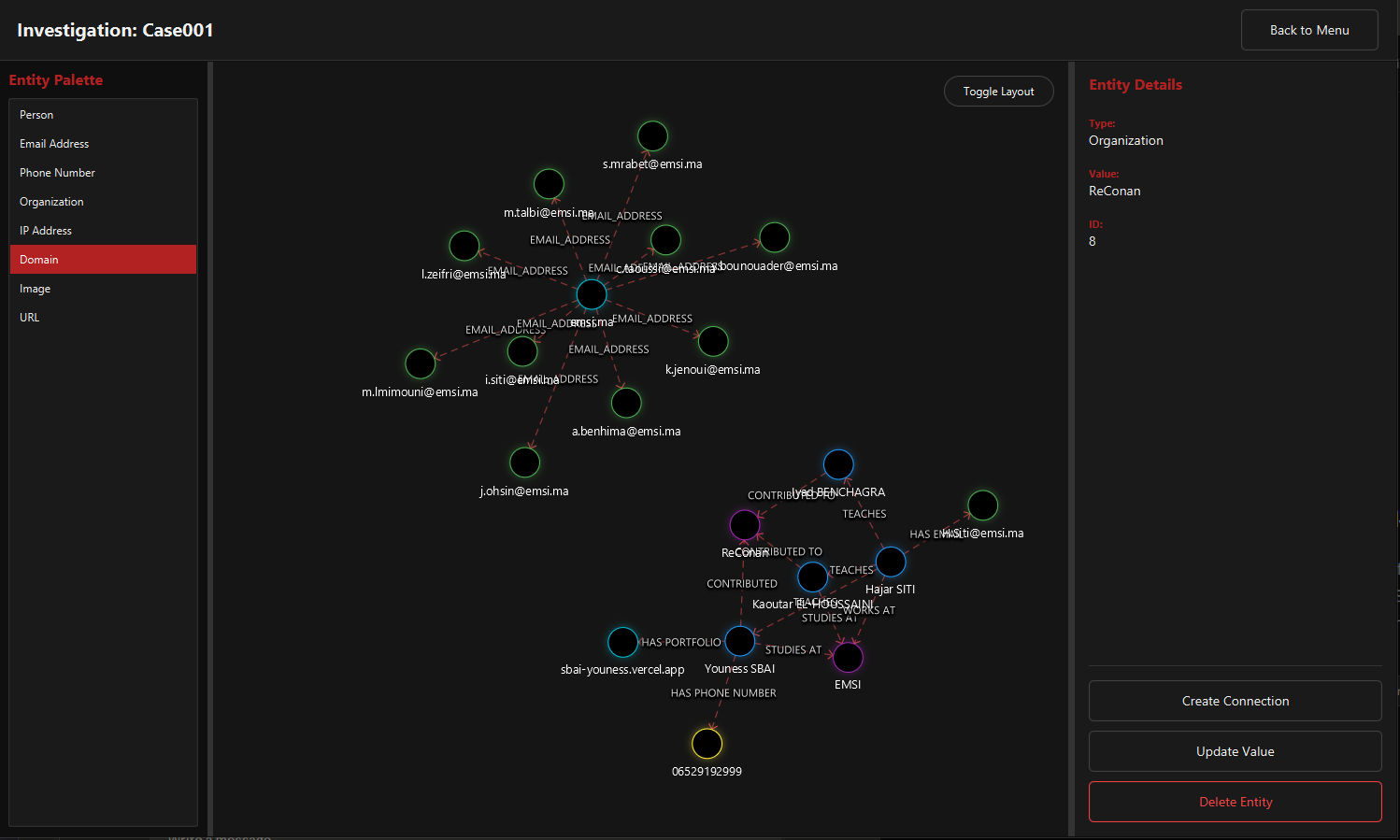

ReConan - Investigation Workspace

Investigation Workspace

Live graph intelligence

Drag entities from the palette, run transforms, and watch relationships materialise in real time. Each node type is colour-coded for instant recognition.

Force-directed graph with drag & link

Run transforms on any node

Colour-coded entity types

Results persist automatically to SQL Server

Live Data Enrichment

Run transforms on any entity to pull real intelligence from Shodan (IP lookups), Hunter.io (domain emails, email verification), and more. Results appear as new nodes instantly.

Interactive Graph Visualization

Force-directed graph powered by SmartGraph. Drag, link, and explore entity relationships visually. Each entity type is colour-coded for at-a-glance navigation.

Passive Reconnaissance

All intelligence is gathered through third-party APIs. No direct contact with the target - keeping your footprint invisible while building a comprehensive map.

Persistent Investigations

Every entity, relationship, and property is stored locally in SQL Server with stable IDs and timestamps. Open and continue investigations at any point.

graph TD UI["UI Layer - JavaFX / FXML"] --> C["Controller Layer"] C --> S["Investigation Service"] S --> T["Transform Registry"] T --> A["External OSINT APIs"] C --> G["Graph Manager"] C --> R["Repository Layer"] G --> M["Domain Models"] R --> M R --> DB[("SQL Server")]

UI Layer

FXML-based views with CSS styling and ViewLoader for scene management.

OSINT & Transform Layer

Modular registry of transforms. Add new data sources by implementing a single interface.

Graph Manager

SmartGraph wrapper handling node creation, styling per entity type, and layout physics.

Data Access

Repository pattern with JDBC. Atomic upsert operations preserve entity IDs and timestamps.

Java

Core application language

JavaFX

Desktop UI framework

SmartGraph

Graph visualization

SQL Server

Local data persistence

Jackson

JSON parsing for APIs

dotenv-java

API key management

Fork & Clone

Fork the repository on GitHub and clone it to your local machine.

git clone https://github.com/YOUR-USERNAME/ReConan.git

Configure

Copy .env.example to .env and fill in your database credentials and API keys.

cp .env.example .env

Run

Start the application using Maven. SQL Server must be running with a database named ReConan.

mvn javafx:run

Investigate the Unseen

See it in action
